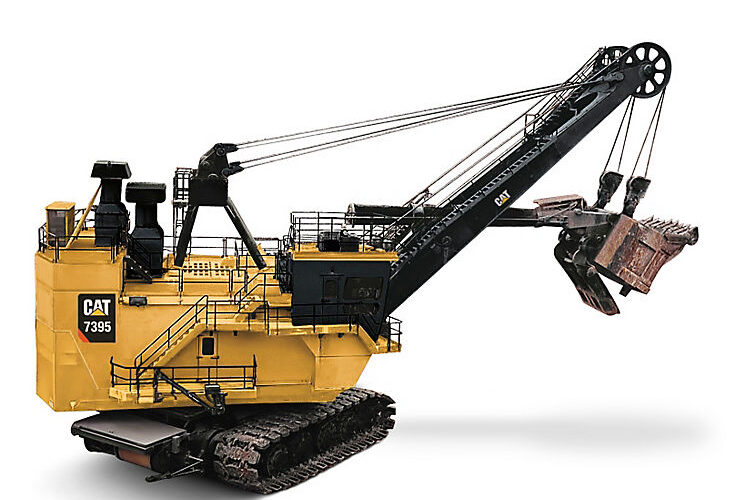

⚡ Electric Rope Shovels

Electric rope shovels are massive mining machines used to dig and load extremely large volumes of material—typically overburden or ore—into haul trucks. Powered by electricity, these machines operate with ropes and pulleys rather than hydraulics, making them ideal for continuous, high-capacity surface mining operations.

🔧 Key Components of an Electric Rope Shovel

Component Description
Boom The long arm that supports the dipper handle and provides reach.
Dipper (Bucket) The large bucket used for digging and lifting material.
Rope & Hoist System Lifting and swinging mechanisms using wire ropes and electric motors.
Crowd Mechanism Pushes the dipper into the material face; either rope-driven or rack-and-pinion.
Swing Mechanism Rotates the upper structure to dump the load into haul trucks.
Crawler Base Tracks for movement, although these machines typically operate in fixed areas.
Operator Cab Control station with advanced monitoring and safety systems.

🏗️ Primary Applications

  • Surface (open-pit) mining
  • Removing overburden (soil/rock covering valuable ore)
  • Loading large haul trucks in high-production mines (e.g., copper, iron ore, coal)
  • Strip mining and other bulk material handling

✅ Advantages of Electric Rope Shovels

  • Extremely durable — designed for continuous, high-volume digging in tough rock
  • Low operating cost — uses electricity instead of diesel
  • Long service life — components are robust and easily maintained
  • High productivity — large bucket capacities and fast cycle times
  • Lower emissions — especially when powered by renewable electricity sources

⚖️ Limitations

  • Less maneuverable — large footprint, typically stationary for long periods
  • High upfront cost — major investment in infrastructure and electrical supply
  • Not ideal for shallow or narrow work zones

🏷️ Top Electric Rope Shovel Manufacturers

  • Caterpillar (formerly Bucyrus)
  • Komatsu (formerly P&H Mining Equipment)
  • Liebherr (produces rope and hydraulic hybrid models)

📊 Typical Specs for Large Electric Rope Shovels

Feature Range
Bucket Capacity 30 – 120+ cubic yards (23 – 92+ m³)
Operating Weight 1.5 – 3+ million lbs (700–1,400+ metric tons)
Boom Length 35 – 60+ feet (10 – 18+ meters)
Payload per Pass 50 – 120+ tons
Power Source 4,000 – 7,000+ HP electric motors

🛠️ Common Models

Manufacturer Model Bucket Capacity Notable Feature
Caterpillar 7495 HD/HR Up to 120 yd³ Efficient AC drive systems
Komatsu P&H 4800XPC Up to 122 yd³ Payload optimization systems
Liebherr SR 7100 (concept) Varies Rope-hydraulic hybrid designs
