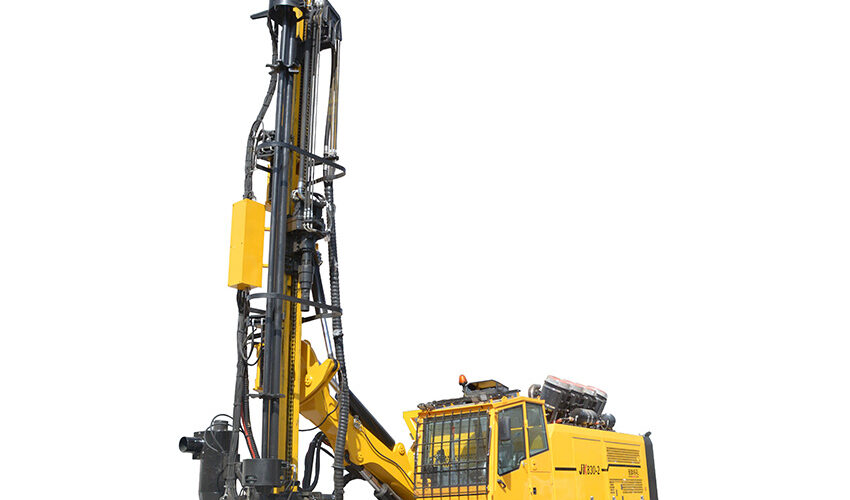

🛠️ Drill Rigs

Drill rigs are machines used to create boreholes or shafts in the earth for a wide variety of purposes, including mineral exploration, oil and gas extraction, geotechnical investigation, and construction foundation work. They range from small, portable rigs to massive, land-based or offshore platforms.

🔧 Key Components of a Drill Rig

Component Description
Derrick or Mast Tall structure that supports the drill string and lifting operations.
Rotary Table/Top Drive Turns the drill string and bit to bore into the earth.
Drill String A series of connected drill pipes that transmit rotation and weight to the drill bit.
Drill Bit The cutting tool at the bottom; different designs for soil, rock, or minerals.
Mud Pump Circulates drilling fluid (mud) to cool the bit and carry cuttings to the surface.
Power Unit Diesel, electric, or hydraulic systems to power the rig.
Control Cab Operator’s station for managing drilling operations.

🏗️ Types of Drill Rigs

Type Best Use Case
Auger Rigs Shallow soil sampling, geotechnical testing, environmental drilling.
Rotary Rigs Deep drilling for water, oil, or geothermal wells.
Percussion Rigs Soil investigation using impact-driven sampling tools.
Core Drill Rigs Mining exploration; extract core samples for analysis.
Blast Hole Rigs Surface mining; drill holes for explosive charges.
Hydraulic Drill Rigs Foundation and piling work; can be mounted on crawler or truck chassis.
Offshore Rigs Oil and gas drilling in ocean environments (jack-up rigs, drillships, semisubs).

🛠️ Common Applications

  • Oil & gas exploration and production
  • Mineral and coal exploration
  • Geothermal energy drilling
  • Water well drilling
  • Construction foundation piling
  • Geotechnical and environmental testing
  • Blasting in quarry or open-pit mining

✅ Advantages of Modern Drill Rigs

  • High precision for targeted drilling
  • Versatility with interchangeable bits and depths
  • Automation and safety systems improve productivity
  • Modular design allows rigs to be transported and assembled on site
  • Data integration for exploration and mapping

🏷️ Top Drill Rig Manufacturers

  • Sandvik
  • Epiroc (formerly Atlas Copco)
  • Boart Longyear
  • Schramm
  • Soilmec
  • Herrenknecht (for tunnel boring and deep drilling)
  • NOV (National Oilwell Varco) – for oilfield rigs

📊 Typical Specs by Drill Rig Type

Rig Type Depth Range Common Power Source Notable Feature
Water Well Rig 200 – 1,500 ft Diesel or hydraulic Rotary or hammer drilling
Core Drilling Rig 300 – 10,000 ft Diesel-electric Retrieves cylindrical samples
Blast Hole Rig 30 – 200 ft Diesel High-speed, shallow drilling
Oil & Gas Rig 5,000 – 30,000+ ft Diesel-electric Massive masts, complex systems
